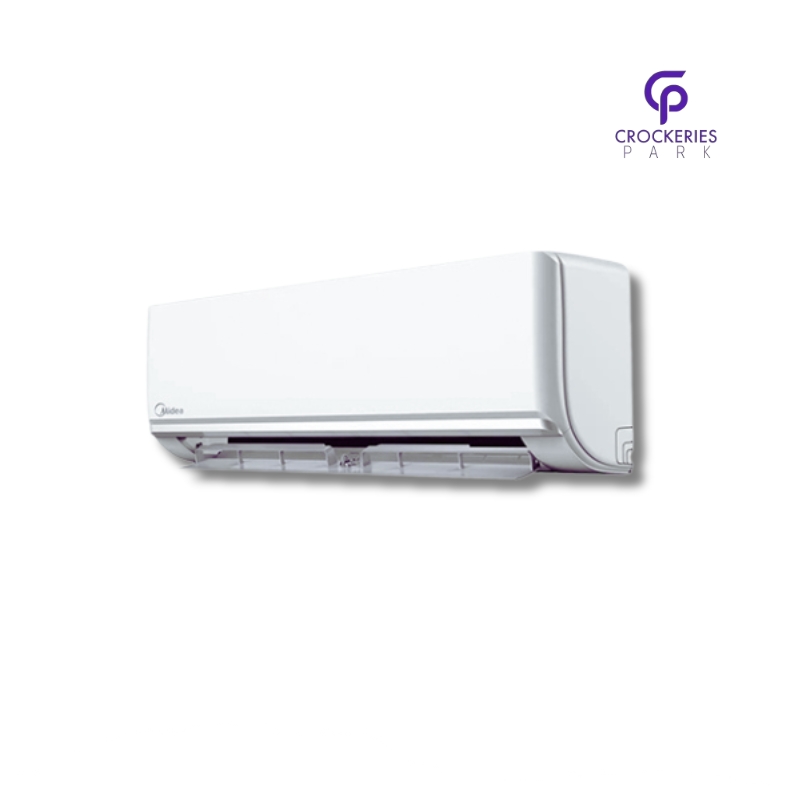

MIDEA 2 TON AC SPECIFICATIONS

General Information

• Air Conditioner Type: Non-Inverter
• Function: Cooling
• Cooling Capacity: 24,000 BTU/hr
• Compressor Type: Rotary
• Refrigerant Type: R-410A

MODEL DETAILS

• Model: MSA-24CRN
• Power Supply: 187-264V, 50Hz, 1Ph

COOLING PERFORMANCE

• Cooling Capacity: 24,000 Btu/h
• Input Power: 2,200 W
• Rated Current: 9.60 A
• Energy Efficiency Ratio (EER):
• W/W: 3.00
• BTU/hr/W: 10
• Max. Input Consumption: 2,670 W
• Max. Current: 11.6 A

COMPRESSOR

• Type: Rotary
• Brand: GMCC

AIR FLOW & NOISE LEVELS

• Indoor Air Flow (Hi/Mi/Lo): 1,196.7 / 972.5 / 884.7 m³/h
• Indoor Noise Level (Hi/Mi/Lo): 47 / 44 / 41 dB(A)
• Outdoor Noise Level: 58 dB(A)

DIMENSIONS & WEIGHT

• Indoor Unit Dimensions (W×D×H): 1,080 × 226 × 335 mm
• Indoor Unit Packing Dimensions (W×D×H): 1,155 × 415 × 320 mm
• Indoor Unit Net/Gross Weight: 17.4 / 20.1 kg
• Outdoor Unit Dimensions (W×D×H): 845 × 363 × 702 mm
• Outdoor Unit Packing Dimensions (W×D×H): 965 × 395 × 775 mm
• Outdoor Unit Net/Gross Weight: 51.6 / 57.2 kg

ADDITIONAL INFORMATION

• Refrigerant Type: R-410A
• Thermostat Control: Remote Control
• Operating Temperature Range: 17–30 ℃
