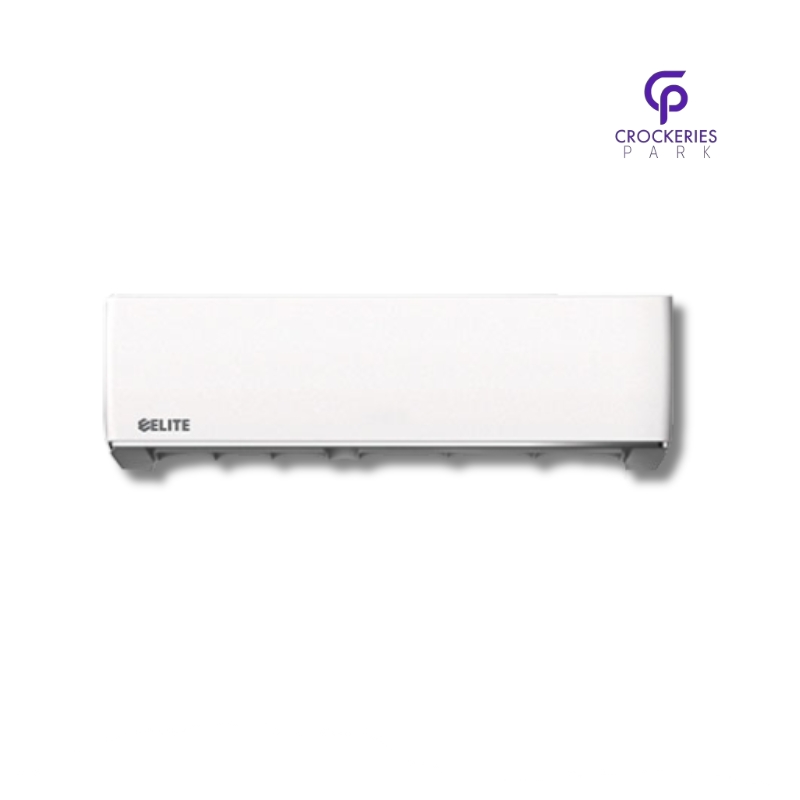

Air Conditioner Specifications

• Type: Non-Inverter
• Function: Cooling
• Cooling Capacity: 24,000 BTU/hr
• Compressor Type: Rotary (GMCC/SIAM - Mitsubishi)
• Refrigerant: R-410A

Technical Specifications

• Model: EHS-24CRN
• Power Supply: 187-264V, 50Hz, 1Ph
• Cooling Capacity: 24,000 BTU/h
• Power Input: 2400W
• Rated Current: 11A
• Energy Efficiency Ratio (EER):
• W/W: 3.10
• BTU/Hr/W: 10.57
• Max Input Consumption: 3470W
• Max Current: 15.1A

Performance & Noise Levels

• Indoor Air Flow (Turbo/High/Medium/Low): 1250 / 1100 / 920 / 830 m³/h
• Indoor Noise Level (High/Medium/Low): 45 / 42 / 39 dB(A)
• Outdoor Noise Level: 58 dB(A)

Dimensions & Weight

Indoor Unit:

• Dimensions (W x D x H): 1120 x 225 x 325 mm
• Packing Dimensions: 1205 x 405 x 330 mm
• Net/Gross Weight: 17.4 / 20.1 kg

Outdoor Unit:

• Dimensions (W x D x H): 920 x 380 x 710 mm
• Packing Dimensions: 985 x 440 x 765 mm
• Net/Gross Weight: 51.6 / 57.2 kg

Additional Features

• Thermostat Type: Remote Control
• Operating Temperature Range: 17-30°C

Warranty Information (Residential Usage)

• Compressor Warranty: 5 Years
• Spare Parts Support: 2 Years
• Service Warranty: 2 Years
